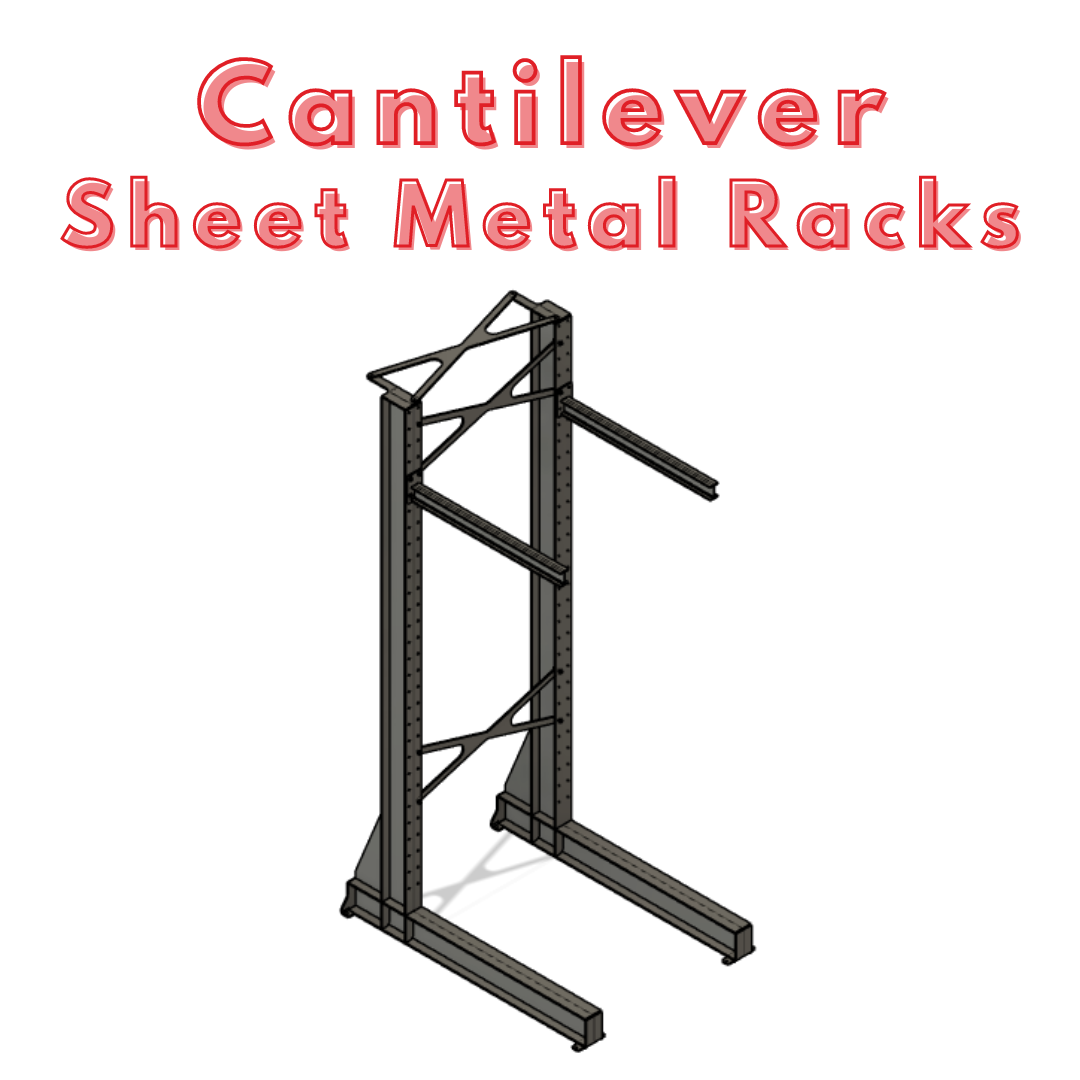

Cantilever Sheet Metals Racks!
Build your own cantilever racks to save $$$ over cassette style racks!

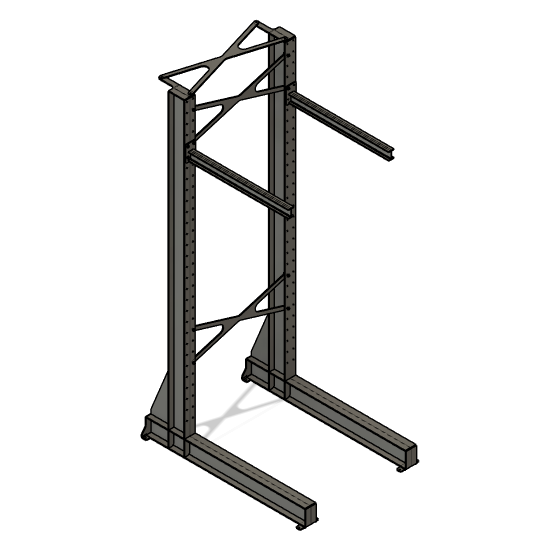

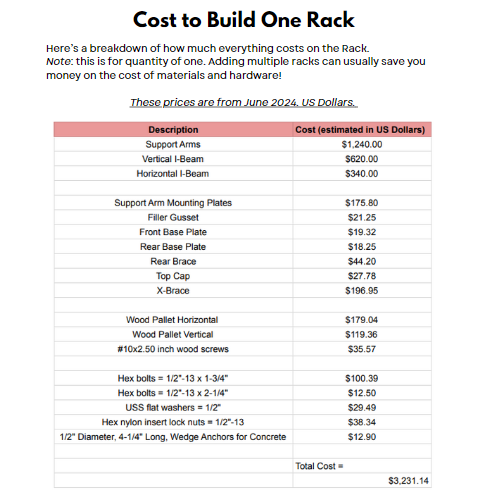

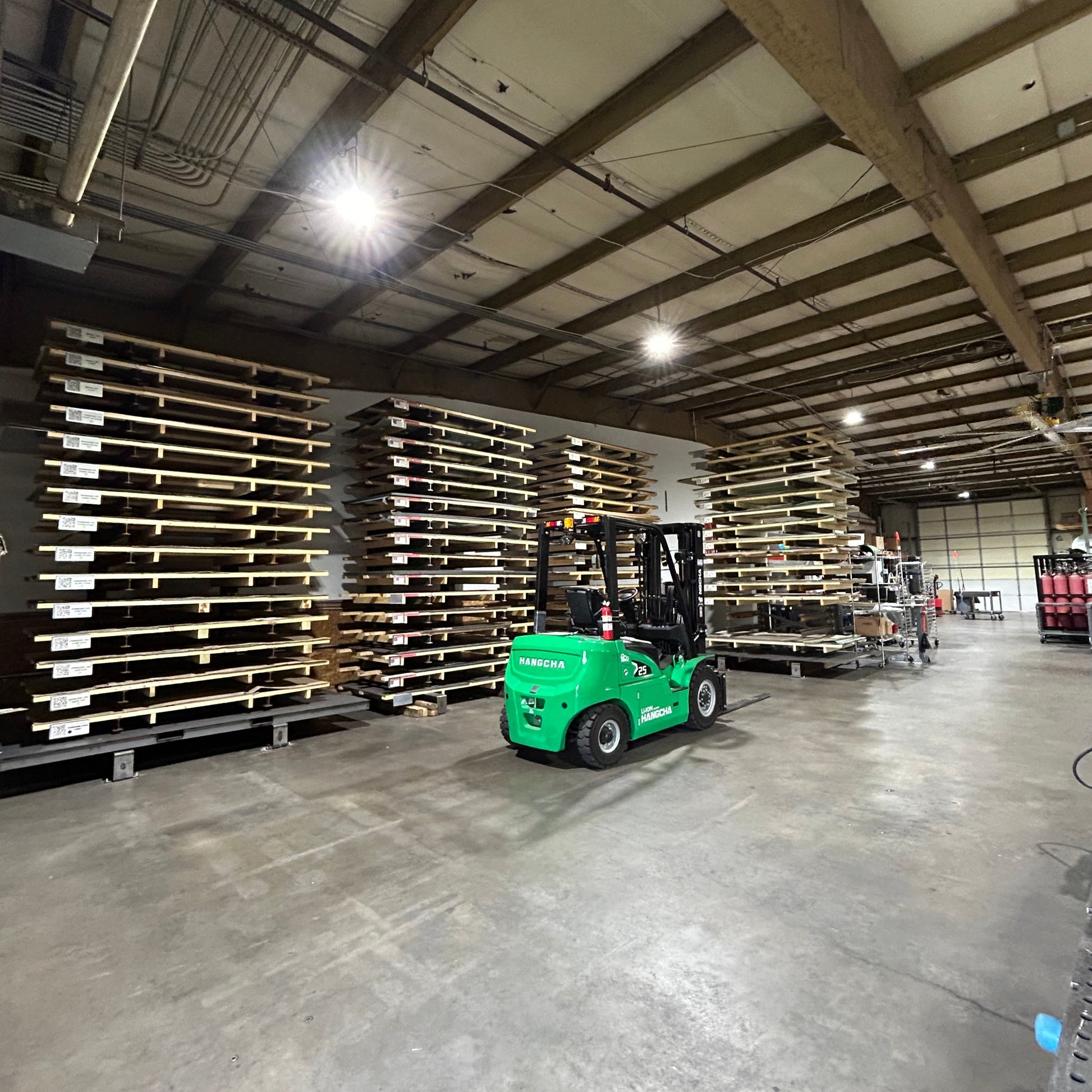

These racks are cantilever style, so there's support arms that hold pallets of sheet metal. The racks themselves are I-beam construction (cheap), and we use wooden pallets built from 2x4's (about $28 to build one!). The cost to make one rack unit that holds 16 pallets is only $3,200! That's almost 8x cheaper than the cassette systems we were quoted!
On top of that they're fairly easy to build and assemble!
- Number of pallets this unit will hold is 16 (4x8 size)
- Max weight per pallet is 3,000 pounds!
- Max reach height needed on forklift is 155 inches
What you'll get in these plans:
- STEP Files of the rack (3D CAD files)
- DXF files for cutting the flat parts
- PDF instructions on how to build the rack & pallets
- PDF parts list & cut list
